Plastic Bag Sealing Machine

Plastic Bag Sealing Machine
Plastic Bag Sealing Machine
Plastic Bag Sealing Machine
Plastic Bag Sealing Machine

Brand:KUNBA

Model:Plastic Sealing Machine

FOB Port:Ningbo/Shanghai

Terms of Payment:T/T

Update:09/23/2020

Product Description

Product Description
1. Sealing machineFRD-980AI is solid-ink print horizontal type with stainless steel. It obtains patent of Chinese invention.
2. It can seal plastic films made from various materials continuously. Such as plastic film, aluminum foil and complex film etc.
3. Constant temperature control and temperature is adjustable. The conveyor can load 5kgs. automatic conveying device can control a variety of different shapes of plastic film tape, in a variety of packaging lines supporting the use of sealing length is unlimited.
4. It has a digital display panel.Use the split design, the service life is more longer.
5. it can print the manufacturing date, batch number and expiry date, etc. by solid-ink at the same time.
6. It's widely used in food, hardware, chemicals, electronic, etc. This model special for small shop, drugstore, supermarket and so on.
7. Using Chinese 3C certified components. Really efficient and stable.
8. Customize: OEM and ODM available.
9. Certificate: ISO9001, CE.

Technology Parameters

Specification

Model

FRD-980AI

Power supply (Voltage)

AC220V/50Hz 110V/60Hz

Power consumption

80W

Heating power

280W*2

Sealing speed

0-24m/min

Sealing width

10mm

Sealing film thickness

0.02-0.80mm

Printing Material

Solid-ink

Temperature range

0-300degree

Conveyor loading

<=5kgs

Shipment Dimension

965*430*380mm

Net weight/Gross weight

27.15kg/30.3kg

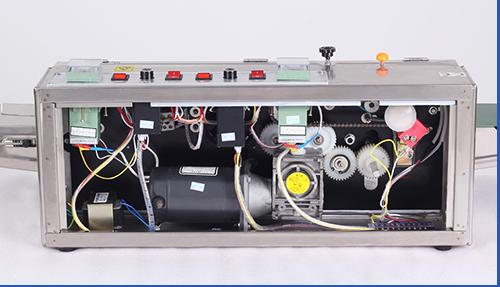

                                                                                    The Working Principle Of Sealing Machine

W’Hen It Turns On, The Electronic Theronic Thermal Component Products Quantity Of Heat To Make The Temperature And Speed Necessary For The Sealing Material Through The Temperature Control Meter And The Speed Regulatorthe Plastic Packing Bag Is Transmitted By The Conveyer Belt With Its Sealing Part Sentinto Between The Two Running Sealing Braids And Subjected To The Extrusion Of The Two Heaters In Heating Area To Have The Plastic Film Bound After Being Heater, Then The Bag Is Cooled In Cooling Area, Its Sealing Partrolled By The Pattern Roller Or The Inker Wheelis Make Out With Stripes Or Netted Veins And Necessary Colorlabelthe Drive Part Consists Of Sealing Belt, Lead Belt And Conveyer Belt All In Synchronism Running Driven By A Motor.

The Product Is Sealed And Packaged To Reduce Product Wear And Tear Sealed Packaging Products Look Beautiful, Clean And Tidy Dust, Moisture, Anti-Daniage, Easy Handling And Storage Products

Frm980 Horizontal Stainless Steel Sealing Machine
Product Information



Frm980 Horizontal Stainless Steel Sealing Machine

Product Details

01.Simple Operation Panel

Simplepanelsimple Operation,Heating Bar Temperature, The Temperature Can Be Seen To Make Your Operation Comfortable.Built-In Motor Speed Controller And Print Position Controller,Motor Speed And Print Position Separately Controllable, Easy To Adjust And Easy To Operate.

02. Sealing Parts

H59 Brass With Bold Widening Heating Blocle High Strength Is Not Eas}R To Deformation, Corrosion Resistance, More Uniform Heating And Longer Service Life. Upper And Lower Ends Of Heating Blocks Cooling Block All Have Thermal Pads To Prevent Heat Transfer To The Body. Cooling Fan Cooling Blockheat Fastermore Stereotypes Of More Beautiful

03.Automatic Printing
By Ink Wheel

Selection Of Imported Matedals Ink Whee], Ink Wheel Will Be Automatically Run Alter The Optical Eye. The Shading Of Ink-Print Can Be Adjustable, The Position Of Ink-Plinting Words Can Be Adjustable, Simple And Easy To Opetate.

04.Conveyor Tab Le Guard

Adopt Stainless Steel Material Without Comer Anti-Knock Damage,More Humane, More Secure.

05.Integration Of The Motor &Amp; Gearbox

Adopt The Design Principle Of German Integration Will Be High Transmission Efficiency, Low Noise, Cooling Fast, Service Life Is 3-5 Tim Higher Than Similar Products.

06.Imported Industrial Nylon Gear

Imported From The Netherlands Industrial Nylon Gear, Smooth Transmissiom No Noise, Longer Service Life &Amp; Wear. (If The Nylon Gear Is Damaged, It Can Be Free Replacement For Lifetime-)

07.The Pressure Of Embossed Roller Ink Wheel Can Be Adjustable

The Embossed Depth And Ink Shades Can Be Adjusted According To The Actual Situation

08.Table Can Be Adjusted Up

And Down, Front And Back Of The Conveyor Can Be Adjusted,It Can Be Adjusted According To Actual Needs To Improve Work Efliciency.

09.Fine Workmanship

The Mechanical Transmission Accurately Fits The Heating Block,Sealing Effect Is Bettet.

Other specification film sealer also could be produced
